Kit APU 2E2 RAM 2GB non assemblata

146,94 €

Kit APU 2E2 non assemblato.

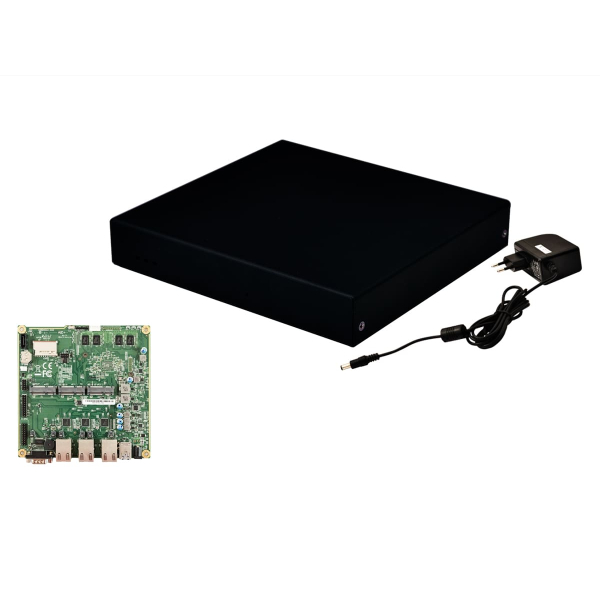

La confezione include: Board, Chassis, AC Adapter

SKU
KIT_2E2
1 Nome Prodotto Kit APU 2E2 RAM 2GB non assemblata
2 Specifiche . CPU: AMD Embedded G series GX-412TC, 1 GHz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache;
. DRAM: 2 GB DDR3-1333 DRAM;
. Storage: Boot from SD card (internal sdhci controller), external USB or m-SATA SSD. 1 SATA + power connector;
. 12V DC, about 6 to 12W depending on CPU load. Jack = 2.5 mm, center positive;
. Connectivity: 3 Gigabit Ethernet channels (Intel i211AT on apu2b2, i210AT on apu2b4);
. I/O: DB9 serial port, 2 USB 3.0 external + + 2 USB 2.0 internal, three front panel LEDs, pushbutton;
. Expansion: 2 miniPCI express (one with SIM socket), LPC bus, GPIO header, I2C bus, COM2 (3.3V RXD / TXD);
. Board size: 6 x 6" (152.4 x 152.4 mm) - same as apu1d, alix2d13 and wrap1e;
. Firmware: coreboot (please contact support@pcengines.ch for source code if desired);
. Cooling: Conductive cooling from the CPU to the enclosure using a 3 mm alu heat spreader (included).
