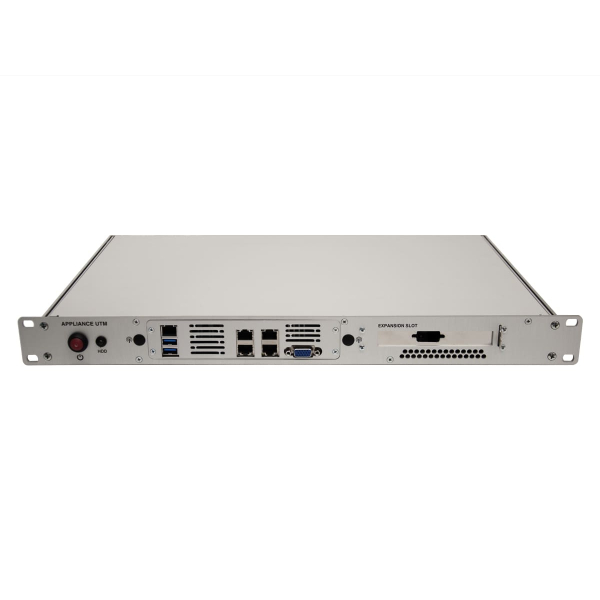

Open NAS Rack B1

729,00 €

NAS Rack mount dalle prestazioni elevate, può montare fino a 6 SSD o 2 dischi SATA da 3,5”, CPU da 4 a 8 Core Intel Atom 2,2 GHz, fino a 256 GB ECC RAM, 4 NIC Gigabit INTEL onboard, 180W Flex ATX Multi-output Bronze Power Supply - Mini-Rack Chassis. Disponibile anche in versione Tower.

La confezione include: Appliance, Alimentatore, Cavo di alimentazione
Non include: Cavo di rete

Disponibilita': Disponibile
SKU
ONARB1-STM1_22

Dettagli del singolo nodo:

Nome Prodotto

Open NAS Rack B1

Main board

Supermicro

Chassis

Rack

CPU

Intel Atom Processor Single Socket FCBGA1310 supported

Memoria

Fino a 256GB Registered ECC DDR4-2400MHz,
Fino a 64GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 4 DIMM slots

NIC

Onboard: Quad LAN with Intel® C3000 SoC, 1GbE



Slot di Espansione

PCI-E 3.0 x4,

M.2 Interface: PCI-E 3.0 x2 and SATA

M.2 Form Factor: 2242, 2280

M.2 Key: M-Key

Alimentazione

180W Power Supplies - Gold Level

Consumo

50 Watt – 110 Watt di consumo energetico a seconda della configurazione. A nodo

USB

1 USB 3.0 (Type-A)

4 USB 2.0 (2 rear, 2 via headers)

Input/Output

Video Output:    1 VGA port(s)

Serial Port:          1 COM Port(s) (1 header)

DOM: 1 SuperDOM (Disk on Module) ports

TPM:    1 TPM Header

Pannelo Frontale

Buttons: Power On/Off button

LEDs: Power status LED - HDD activity LED - Network activity LEDs

Management da Remoto (IPMI)

. Supporto per Intelligent Platform Management Interface v.2.0;
. IPMI 2.0 con supporto virtuale su LAN e supporto KVM su LAN, KVM con HTML 5.

Temperatura/Umidità

Opera tra i 0~60 gradi centigradi / 10% - 85% (non-condensing)

Dimensioni

482,6mm x 285mm x 43,7mm (W x D x H) (1U rackmount)

Colori Disponibili

Grigio Alluminio (come da foto prodotto)

BSD

TrueNAS – pfSense - OPNSense



VmWare: ESXi dalla 7 in poi

Microsoft

Windows 2016 Server;
Windows 2019 Server;

Windows 2022 Server;

Linux

Proxmox VE dalla 6 in avanti

Proxmox Backup Server

Ubuntu;
Debian;
Fedora;

Richiedi la certificazione di un sistema operativo.
